Sensor modules

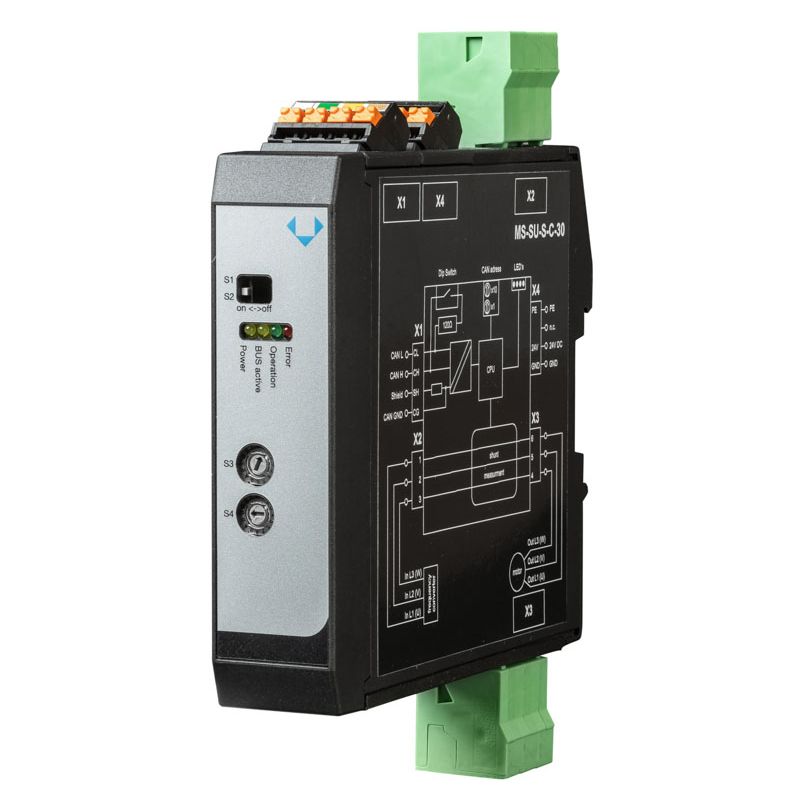

MS-SU-S-C-30
The sensor unit continuously records power values in the microsecond (μs) range and pre-processes them based on user-defined parameters for use by the Gateway or DPU. These pre-processed values are transmitted at millisecond (ms) intervals.
Thanks to its high sampling rate, the module is well-suited for monitoring the power consumption of drive motors controlled by frequency inverters, such as those found in machine tools:
24 VDC ±20 % PELV
-40 °C ... +85 °C
-65 °C ... +110 °C
IP20 (according to IEC 60529)
CE, UL, RoHS, REACH
33 x 125.2 x 116.7 mm
No downloads for this product.
