Sensor modules

Hall Sensors

MS-AC-S-HA100 | MS-AC-S-HA200 | MS-AC-S-HA500

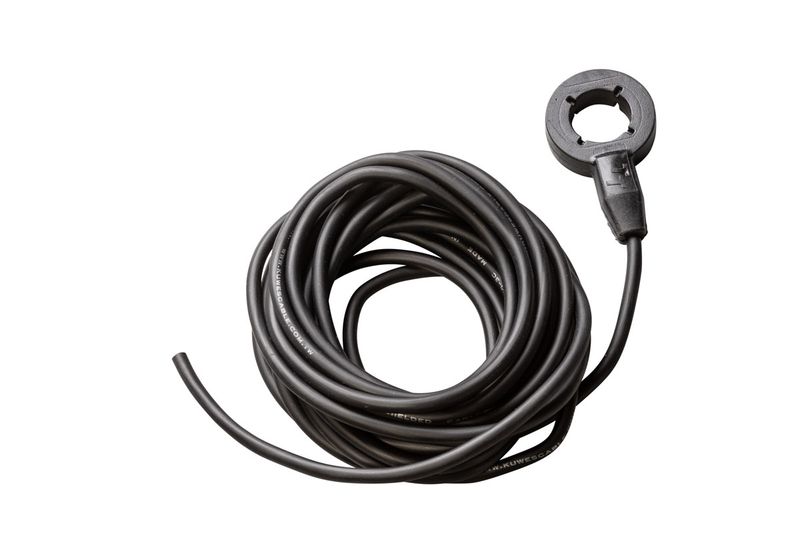

Hall Sensor with cable for the Schubert Power Monitoring

Description

The Hall current sensors are available in three current ranges, combining a compact, cable-mounted design with outstanding measurement performance.

High measurement accuracy is maintained even at high frequencies, while the sealed, rugged housing ensures reliable operation under even the most demanding industrial conditions.

  • MS-AC-S-HA100 –> up to 100 A
  • MS-AC-S-HA200 –> up to 200 A
  • MS-AC-S-HA500 –> up to 500 A

Specifications

Operating temperature

-40 °C ... +85 °C

Storage temperature

-65 °C ... +110 °C

Protection class

IP67

Features

  • Built for rugged environments
  • Fully sealed housing
  • Measuring range up to 500 A
