Scanners

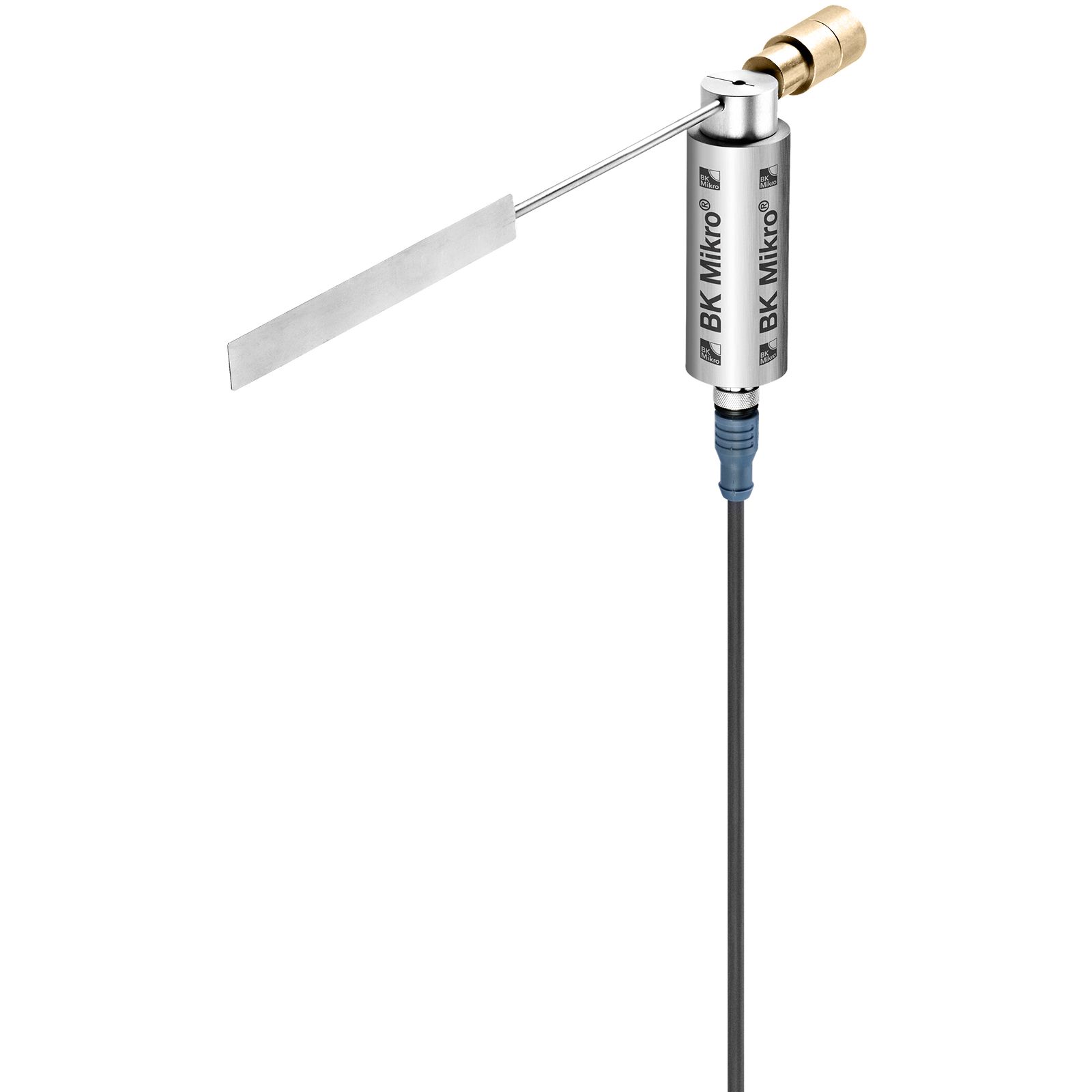

"High-drive" and highly precise, the TK91 is ideal for scanning long tools and detecting the smallest deviations. It accommodates wands up to 660 mm with plates — without requiring lateral swivel space. The powerful gear motor delivers outstanding repeat accuracy and a wide scanning range.

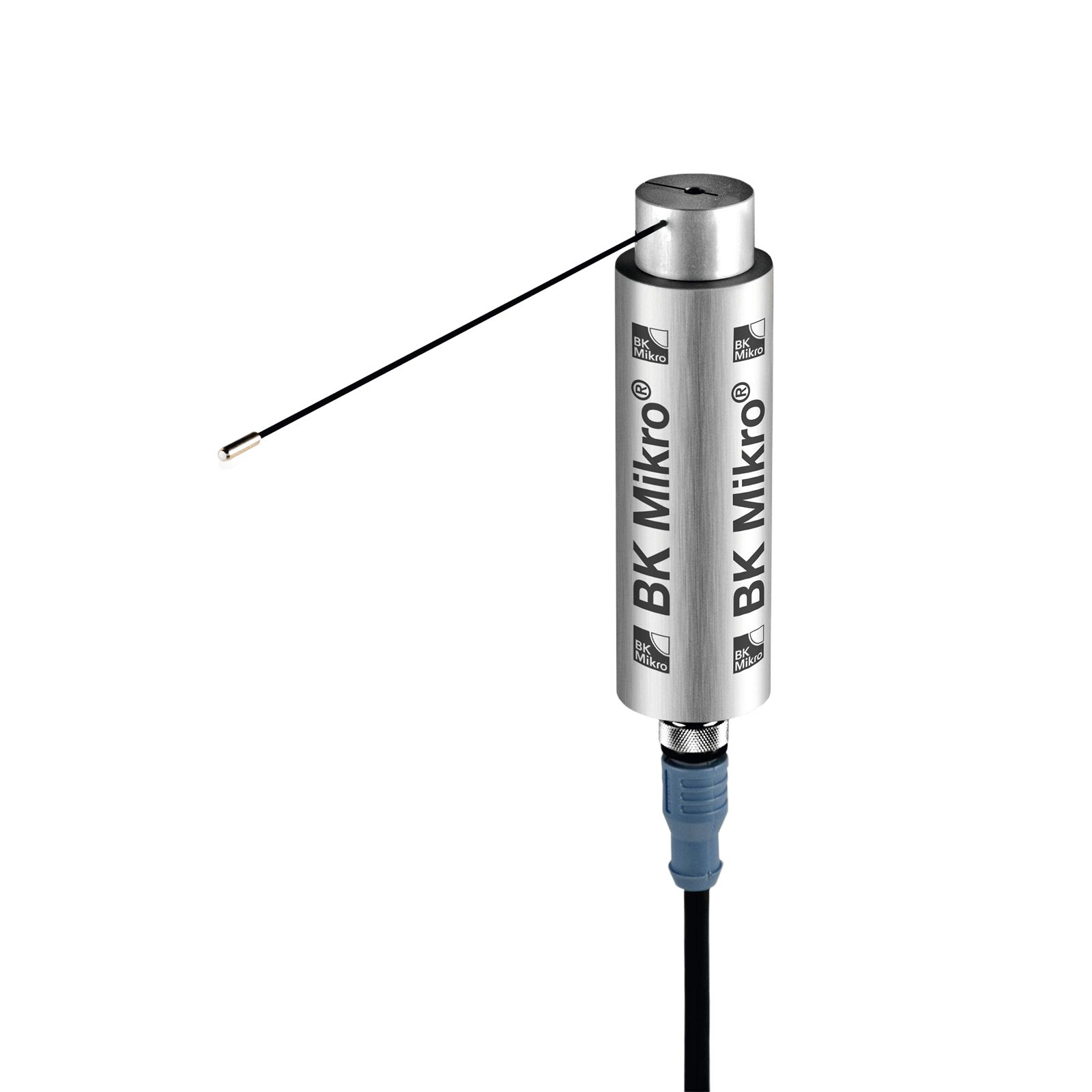

Robust and high-speed, the TK94 is built for monitoring applications requiring extremely short scanning cycles. Type "A" is limited by a mechanical stop, while type "RL" rotates freely in both directions. What sets this series apart is its drive unit, engineered for maximum dynamics and extremely fast response times.

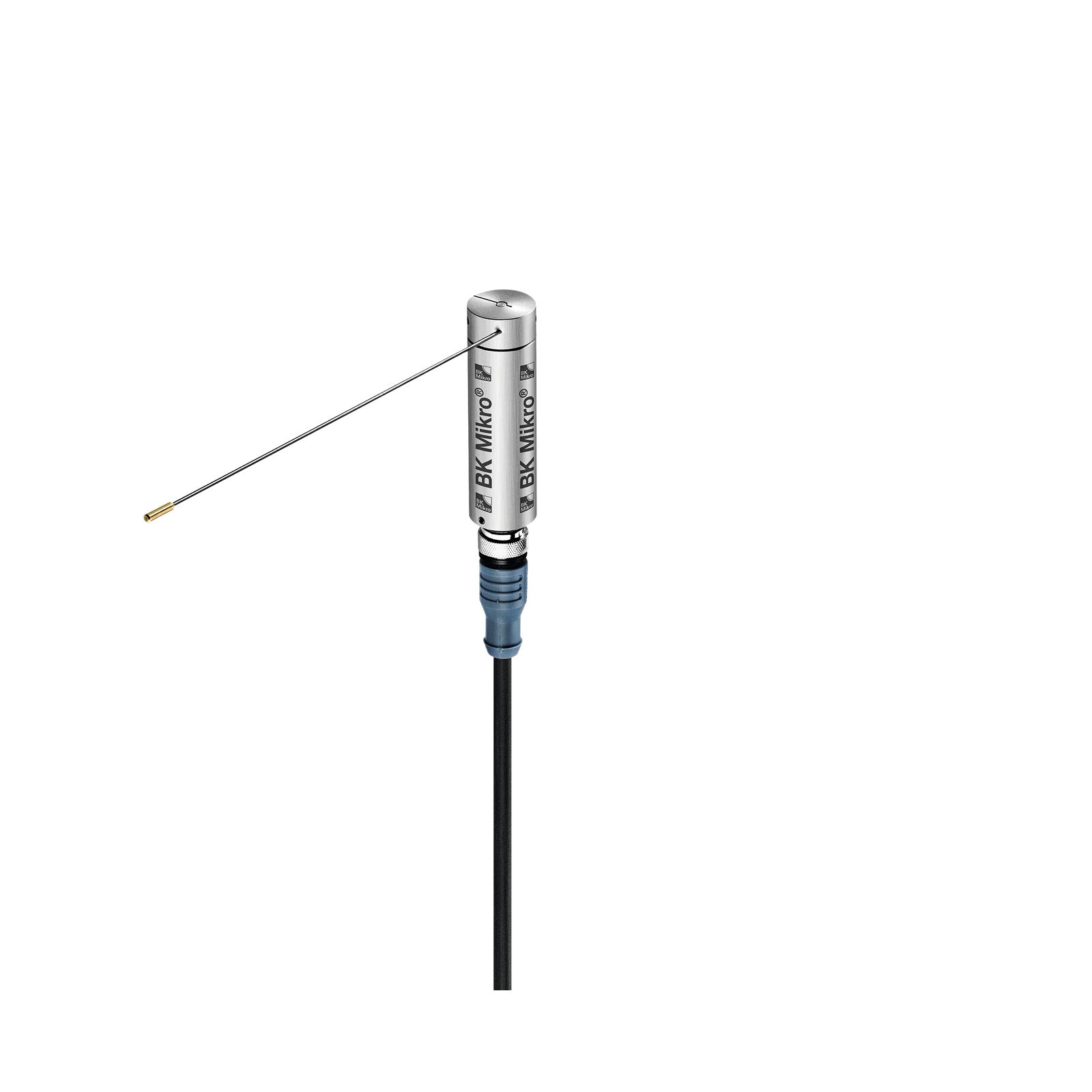

Compact and fast, the TK7 scanner is a proven choice in the price-sensitive segment, ideal for quick and straightforward monitoring tasks. Both variants share the same core features — type "A" uses a mechanical stop to limit rotation, while type "RL" rotates freely in both directions. Thanks to its highly dynamic drive, the TK7's key strength is scanning speed rather than maximum precision.

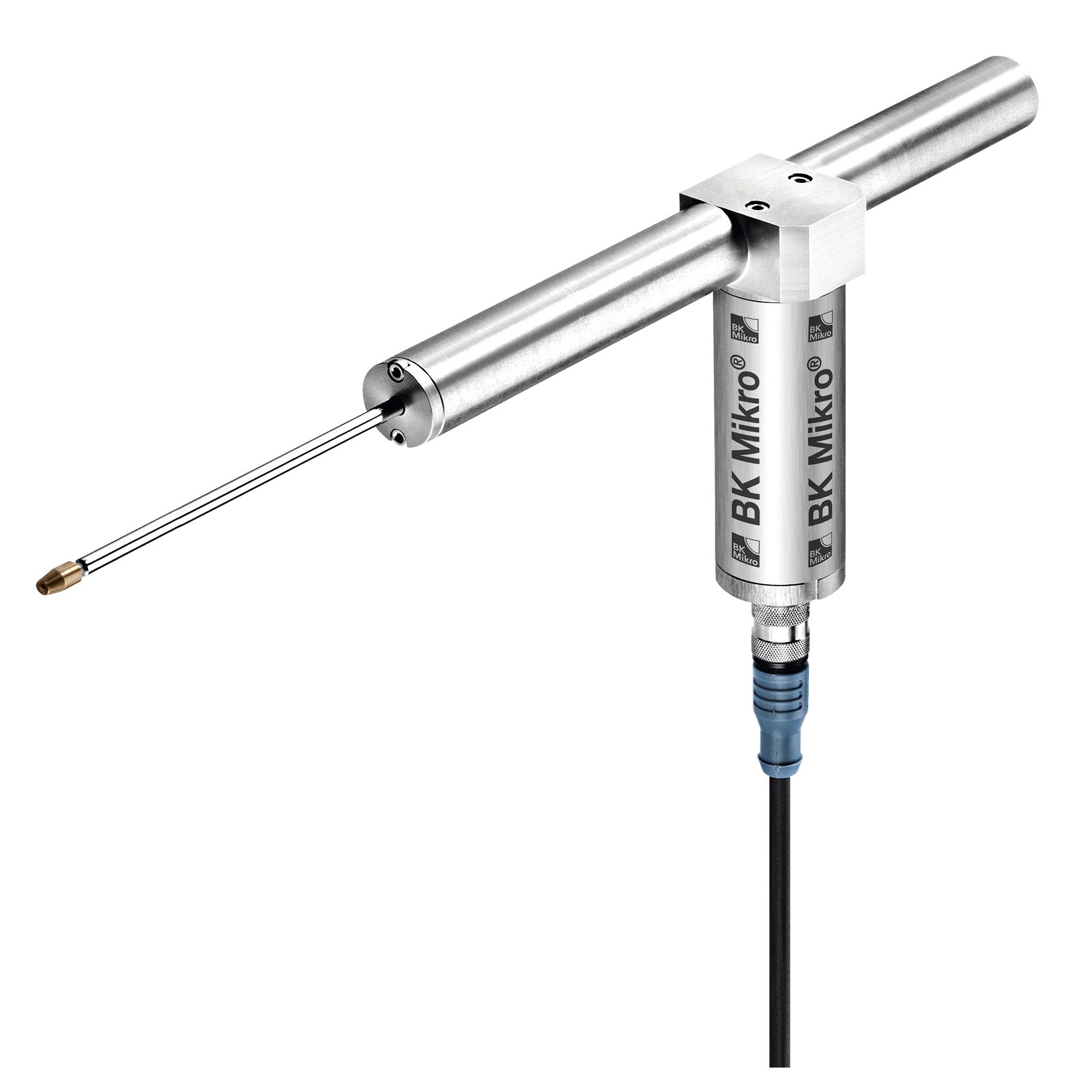

Linear and precise, the TK9LIN delivers outstanding repeat accuracy for measuring tolerances or depths. Ideal for testing in the longitudinal direction where rotational scanning isn't possible — such as in bore holes or confined spaces. Various wand tip materials (brass, plastic, etc.) are available.

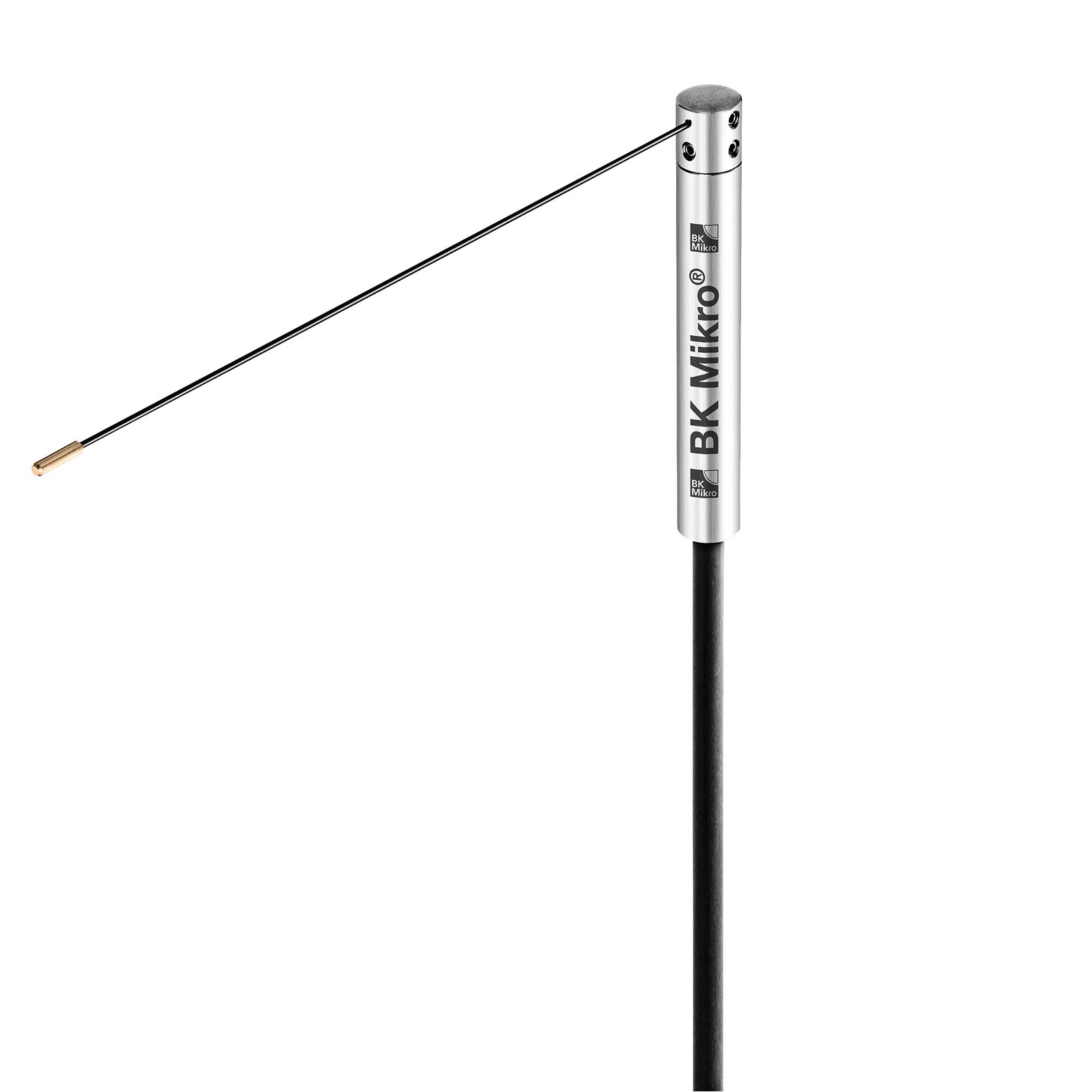

Small and dynamic, the TK96 is ideal for the smallest process zones with maximum system availability. Type "A" has an internal stop, type "RL" allows bilateral scanning. The series stands out with compact dimensions and excellent scanning performance

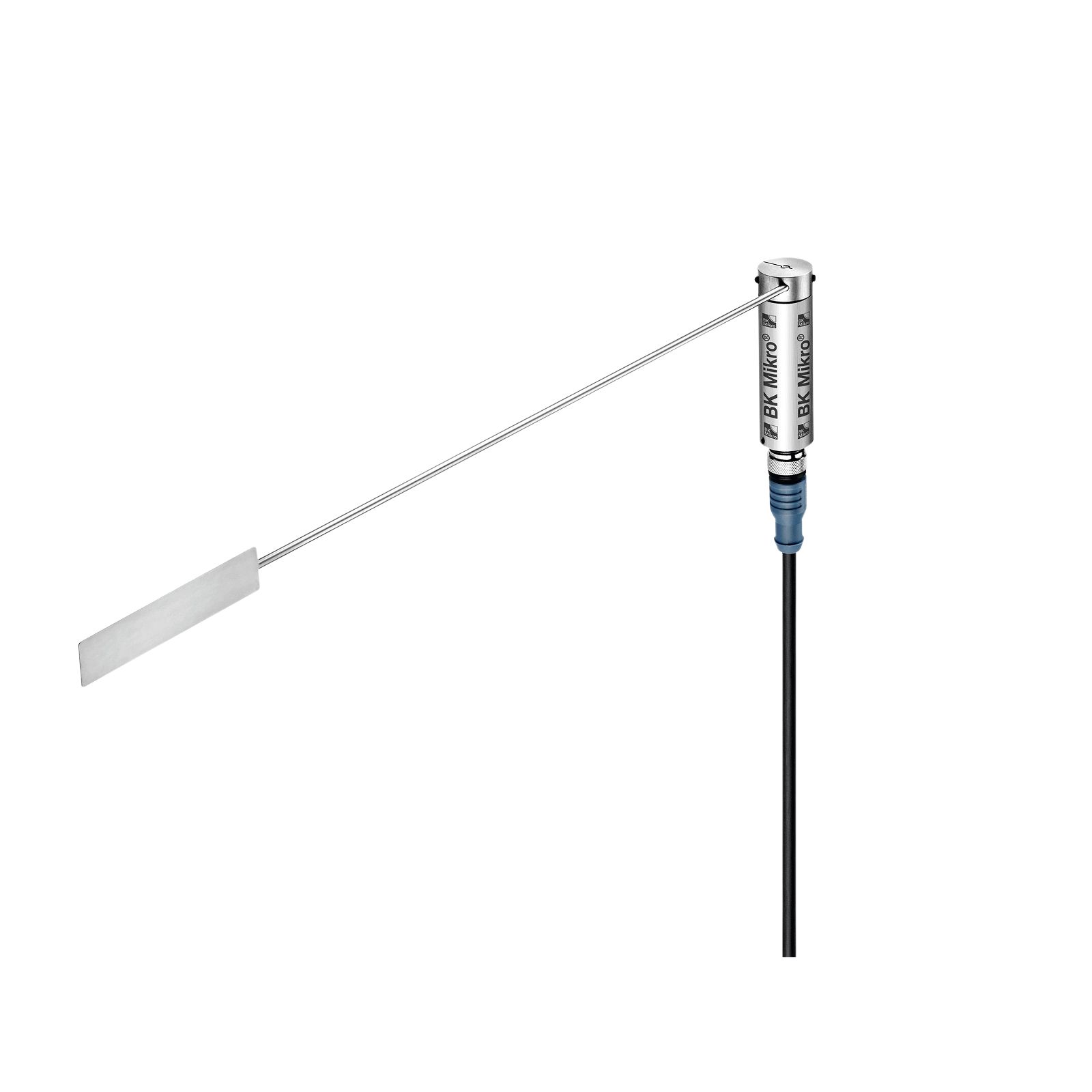

Compact and precise, the TK8 rotary scanner delivers accurate results even at a greater distance from the object, with wands up to 380 mm long. Plate-equipped versions also allow tool tips to be monitored directly inside the tool magazine, while a high-resolution drive ensures maximum precision.
