Scanners
6304234 / 6304235
Characteristics

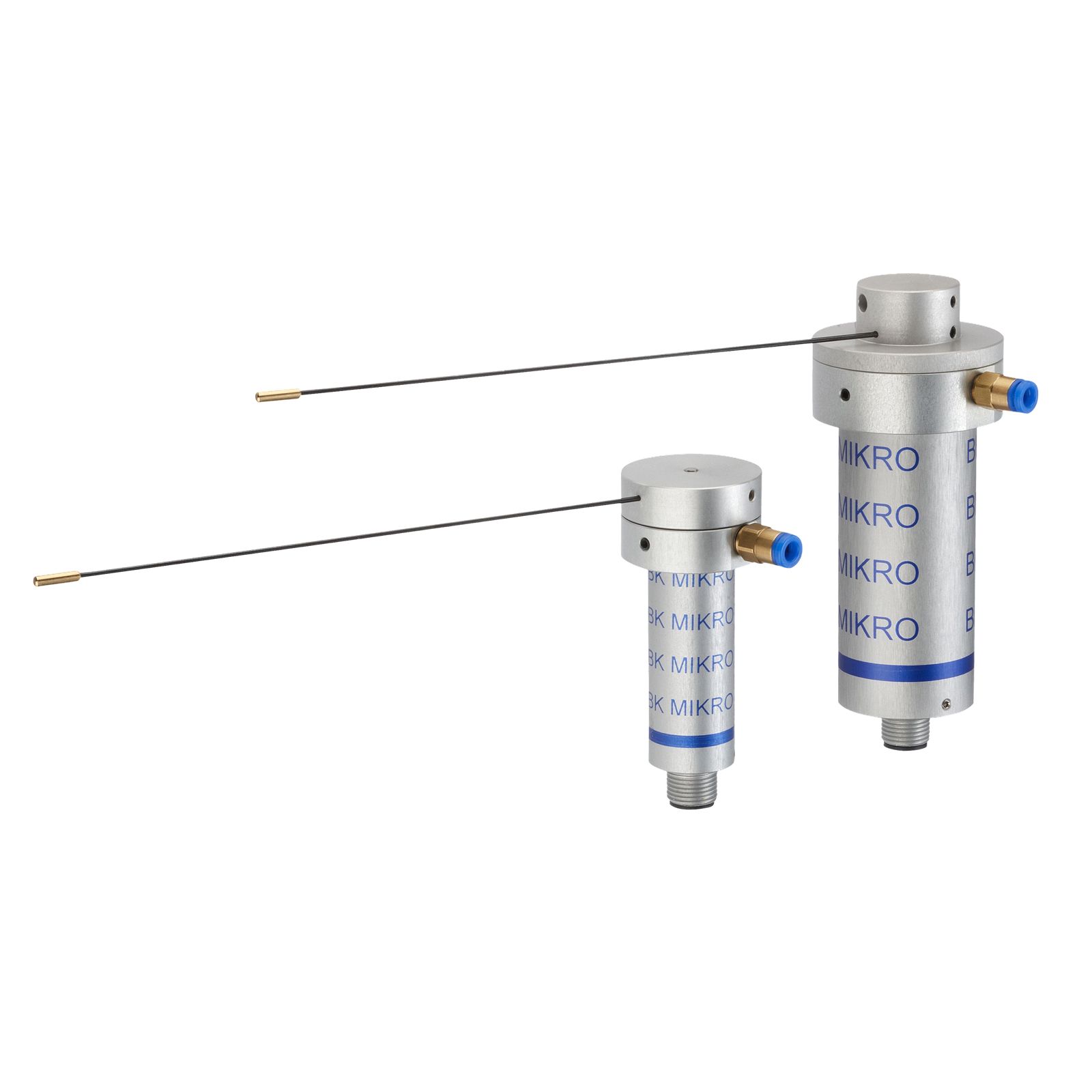

TK7 is established in the price sensitive segment and is particularly suitable for fast and simple monitoring tasks. Both scanner variants of this type have identical features. The only difference is that in type "A" the rotational movement is limited by a mechanical stop whereas type "RL" (without mechanical stop) can rotate in both directions. Due to the highly dynamic features of the drive the advantage of TK7 lies in the very fast scanning speed rather than in the scanning precision.
Scanning
TK7A in one direction: right or left
TK7RL bidirectional: right-left or left-right
Lateral (orthogonal)
Application
Tool/object monitoring and free-space monitoring
170 mm (standard), Ø 1.2 mm
0 °C to +80 °C
-25 °C to +85 °C
3 mm
20 mm
1,2°
0,4 sec / 180°
