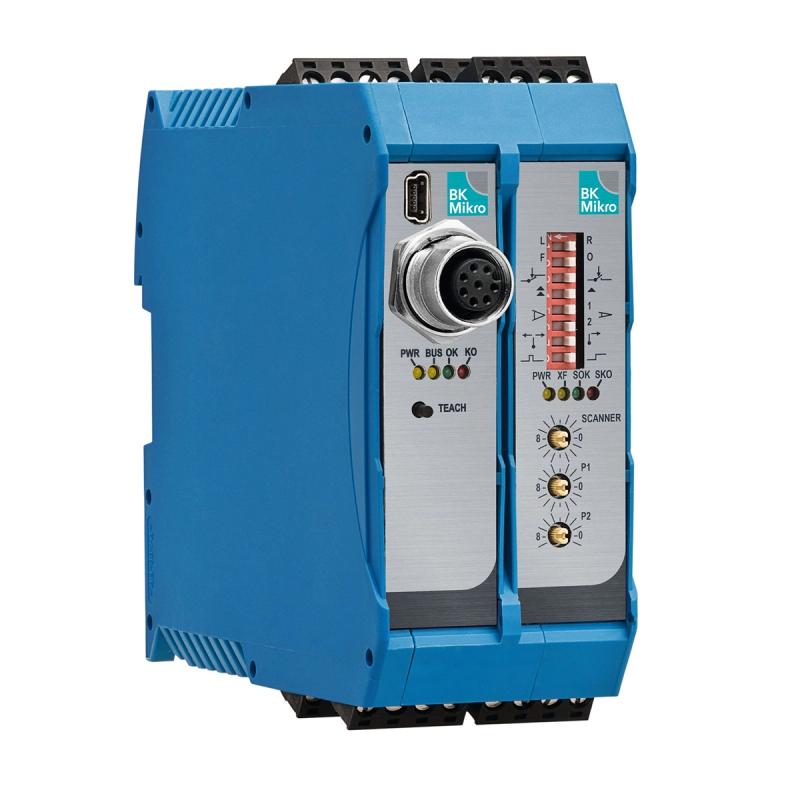

BKM92 Premium Kombi

Description

Mini-USB for PC connection
Digital control inputs (positive or negative logic): 3 x start and teach signal as well as configurable channel 10 x to select/activate up to 512 different positions
Digital outputs: 2 x relay (as N/C or N/O contact) with "OK" and "KO" signal 2 x for free configuration (active switching function for 24 V signal) 3 rotary switches: Selection of scanner and feeding in the scanning angles (adjustable in 24°-steps from 0° to 360°)
8 toggle switches: Selection monitoring type (object or free-space monitoring) Selection rotational direction of wand (right and/or left) Definition of relay outputs (N/C or N/O) Setting of scanning intensity (2 steps) Selection of tolerance range (±0.1° / ±1.0° / ±3.0° / ±10.0°) Pluggable supply voltage and scanner connection
2 x 4 LEDs for current status display
Teach button

Housing

Insulation material, protection class II, built-in type

Protection class

IP 20

Dimensions (W x H x D)

45,2 mm x 99 mm x 113,6 mm

Mounting of housing

Profile rail 35 mm acc. DIN EN 50022

Supply voltage

24 V DC ±20% PELV, Imax = 1 A

Power consumption

max. 24 VA

Control voltage

24 V DC ±20% PELV

Inputs

Switch outputs

Housing	Insulation material, protection class II, built-in type
Protection class	IP 20
Dimensions (W x H x D)	45,2 mm x 99 mm x 113,6 mm
Mounting of housing	Profile rail 35 mm acc. DIN EN 50022
Supply voltage	24 V DC ±20% PELV, Imax = 1 A
Power consumption	max. 24 VA
Control voltage	24 V DC ±20% PELV
Inputs	Galvanically isolated
	Input current approx. 5 mA
	Pulse duration 30 ms min.
Switch outputs	2 x electronical relay 24 VDC, 1 A max., unlimited switching cycles
Switch outputs	2 x high side switch, Imax = 0.5 A
