Scanners
6304250
Characteristics

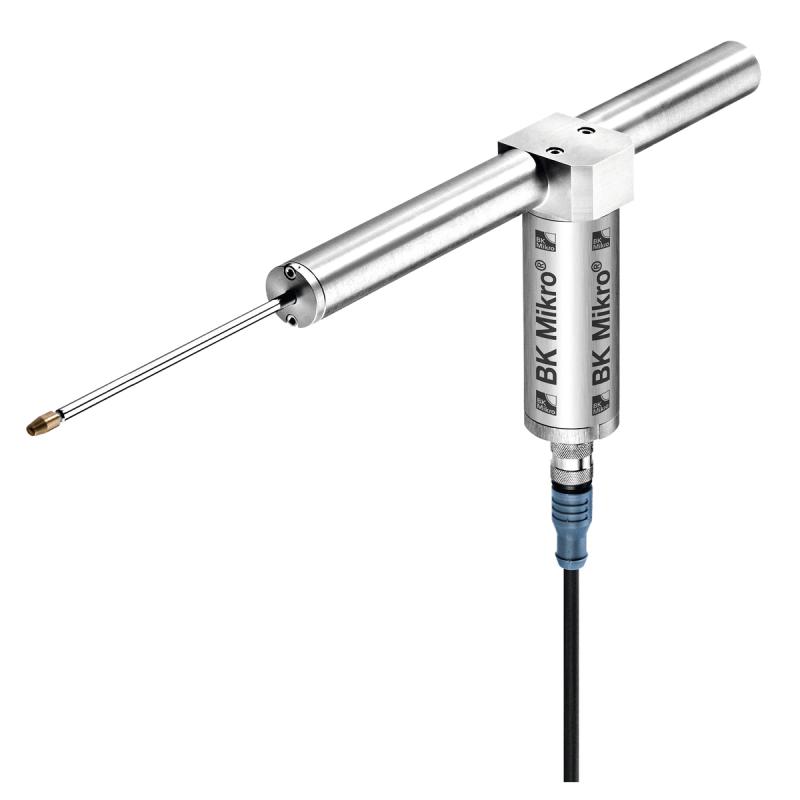

With its superb repeat accuracy TK9LIN can be recommended for all uses where high-precision measurements (e.g. of tolerances or depths) are required. TK9LIN is designed for testing functions in longitudinal direction if rotational scanning is not suitable or possible (as in cavities, bore holes or limited space). Any scanning area between rest position and maximum stroke can be realized. In order to meet a wide range of testing applications specific wand tips (brass, plastics, etc.) are available.
Scanning
Application
Position monitoring
50 mm max. stroke
50 mm max. Hub
0 °C to +80 °C
-25 °C to +85 °C
32 mm / 20 mm
0,05 mm
1,4 sec / 50 mm
